The Anden A710V3 Dehumidifier is designed for cultivation from the ground up.
Anden A710V3 Specifications & Literature
Model A710V1 & A710V3 Dehumidifier Parts List
Model A710V3 Dehumidifier Specification Sheet
Model A710V3 Dehumidifier Submittal Sheet
Model A710V1 & A710V3 Dehumidifier Quick Start Guide
Model A710V1 & A710V3 Dehumidifier Installation & Operating Instructions
Model A77 Dehumidifier Control Installation & Operating Instructions
Daisy Chain Installation Instructions
Round Duct Kit Installation Instructions
Anden Product Guide
The Anden A710V3 is one of the greatest innovations in atmosphere control technology. Utilizing it’s game changing variable-speed, Low Grain Refrigerant Technology (VLGR patent pending) which will absolutely maximize efficiency and performance throughout the growth cycle. With this new technology you will be able to maximize moisture removal capacity and maintain tight control over vapor pressure deficit during late flower cultivation by modulating the unit to match your load.
The VLGR is the big seller of this unit as it will be able to easily stabilize your growing environment even during the challenging late flower stage. It does this by modulating the speed of the dehumidification based on the precise load conditions of your grow environment. This will allow for robust VPD in any growth conditions.
You will have no problem maintaining proper humidity levels with this unit as it easily removes 710 pints of moisture per day at 80°F/60%RH. Even with this dehumidifier pulling 710 pints per day it only requires a 30-amp breaker. It also covers a large area with it’s 1760 CFM @ 0.0” allowing for constant air circulation. Also comes equipped with an on-board digital interface to really let you dial in the right numbers for your environment.
Get the best moisture removal per dollar with the Anden A710V3 and protect your product from molds and rot today, while ensuring their growth is as efficient as possible.
A710V3 Key Features:
710 Pints/day – The most water removal for your investment
VLGR Technology – Delivers energy efficiency and allows for the smoothest environmental control over your grow
Maximize VPD – The Anden A710V3 dehumidifier is optimized for grow, giving you the power to maximize VPD across all grow conditions, including during the crucial late flower stage
Runs on 30-Amp Breaker – The only dehumidifier on the market with a capacity of 500+ pints that can operate on a standard 30-amp breaker
1760 CFM @ 0.0” – Powerful circulation helps remove moisture from the air efficiently
Energy Efficient – Removes up to 3 liters per kilowatt hour, helping minimize operational costs
Easy Filters – The self-sealing, MERV 11 air filter protects the unit’s vital components, plus it’s easy to replace
Flexible Installation – The pre-installed electrical plug is simple to remove for hard-wired applications. Plus, options for suspended, freestanding, or ducted installation
Safety Checks – Terminals on the dehumidifier make it easy to install a float switch to protect against overflows
Digital Interface – On-board monitoring enables precise settings and simple diagnostics
Remote Control – The included Model A77 remote control measures relative humidity at canopy height for optimum control of your grow environment (upgrade options available), and relays diagnostics from the dehumidifier
Built to Last – Dependability is at the heart of what we do. That’s why we offer a 5-year warranty on this product.
Voltage – The Anden A710V3 dehumidifier is designed for use with 277VAC power.
Technology Showcase
Variable-Speed, Low Grain Refrigerant Technology (VLGR)
Innovative. Sophisticated. Designed For Grow.
The Anden A710V3 dehumidifier is the industry’s first dehumidifier with Variable-Speed, Low Grain Refrigerant Technology. Why does that matter? Simply put, it’s the best dehumidifier investment you can make.
The A710V3 dehumidifier delivers the greatest moisture removal per dollar spent compared to any unit available today. The difference is in the variable speed refrigeration system, which ensures efficient moisture removal across all grow conditions. And it works on existing 30-amp breakers for fast, low-cost installation.
Maximize VPD Across Grow Conditions
Tight control over Vapor Pressure Deficit gives you the ability to directly influence the profitability of your operation as VPD impacts both yields and crop quality. The Anden A710V3 unlocks the ability to control terpene production, enhance color profiles, and increase THC levels.
Late Flower Performance
The late flower stage of the grow process is challenging for single-speed dehumidification systems as the dew point approaches freezing temperatures. They can’t modulate their power and quickly overcool the coil, causing temperatures below 32°F that require the unit to go through a defrost cycle. VLGR technology allows the A710V3 to back off the compressor, matching the low load conditions of the late flower stage so it can remove moisture longer–up to 4-5 times longer than single-speed units. This dramatically improves capacity, efficiency, and most importantly, the stability of your grow room.
Amplify Your Amps
With a smart design built specifically for grow operations like yours, the Anden A710V3 removes 40% or more moisture than other units that can be installed on a 30-amp breaker. To match this level of moisture removal other units require a 50-amp breaker with expensive 6-gauge wire, which is typically twice the cost of the 10-gauge wire used in a 30-amp breaker. The combination of capacity (710 PPD) and installation on a 30-amp circuit means you’re making the most of and achieving efficient use of your available amps with the A710V3.
The Anden Impact
Anden dehumidifiers put you in control of your grow environment. With the A710V3 Dehumidifier, you’re working with the latest technology to ensure maximum moisture removal and optimal VPD control. This grow-optimized dehumidifier is designed to maximize your crop’s potential and profitability.
INSTALLATION OPTIONS
Cultivation rooms come in all shapes and sizes. This Anden A710V3 Dehumidifier gives you flexible installation options to ensure maximum effectiveness resulting in optimized conditions.

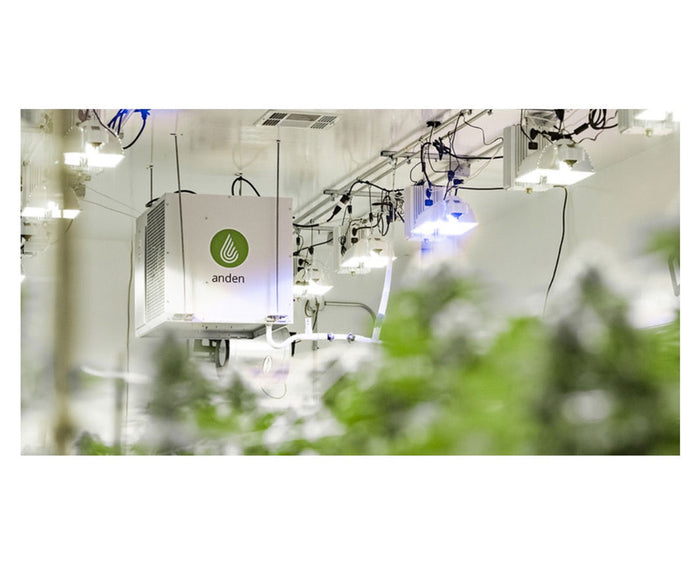

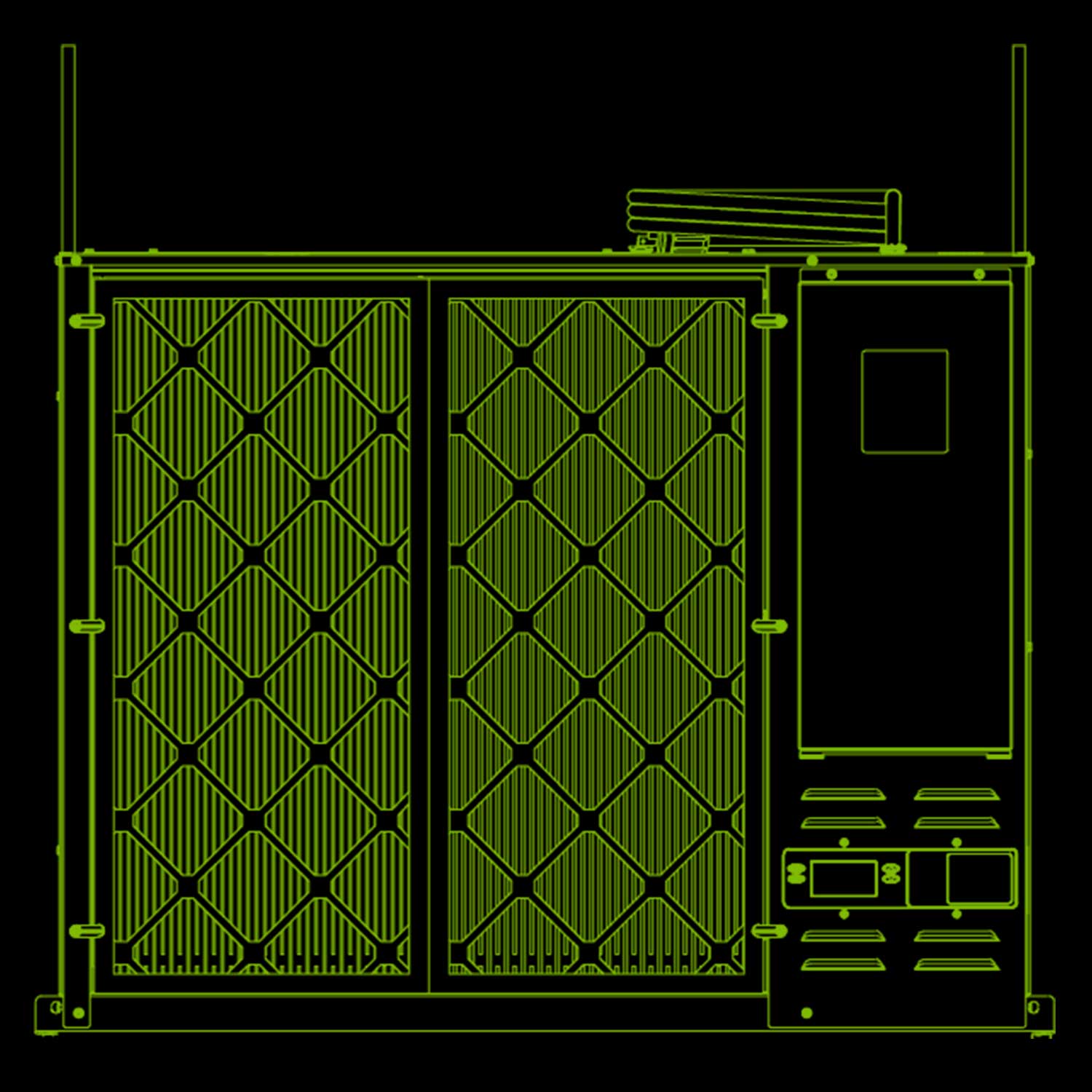

SUSPENDED – Installs above the lights to save space without blocking light energy
- Includes brackets for suspending unit from ceiling
- Pulls in air, dehumidifies, and returns it to the space
- Easily captures condensate from each unit to a central location

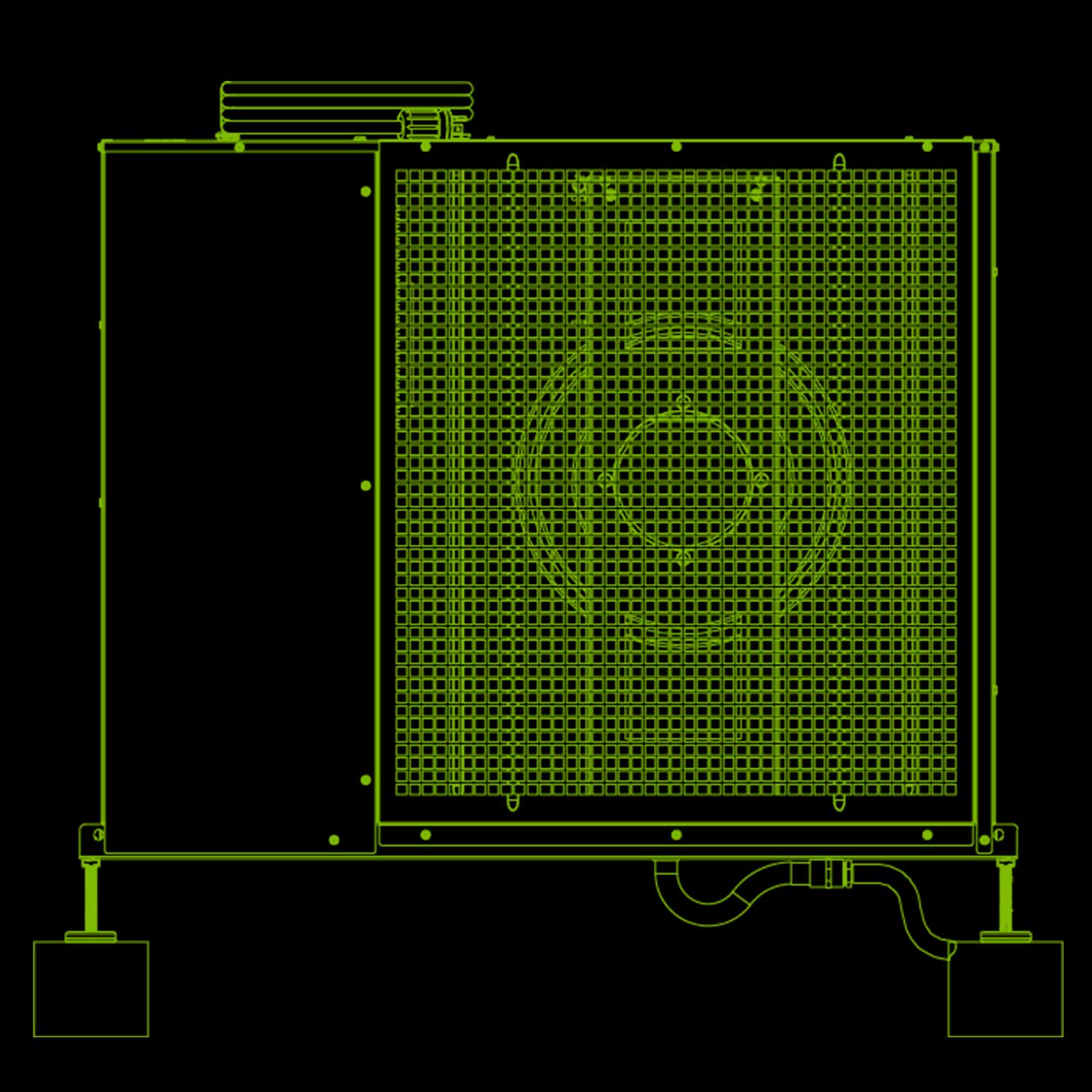

FREESTANDING – Operates within the cultivation room
- Humid air is pulled into the dehumidifier
- Air is dehumidified and returned to the space
- Ideal for grows where suspended units aren’t possible
- Includes adjustable feet for level installation on horizontal surfaces

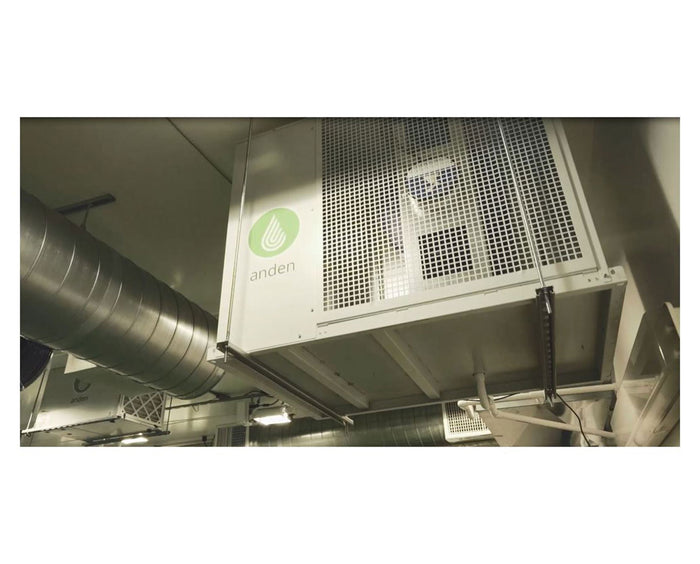

INLET AND OUTLET DUCTED – Flexible installation
- Located in a separate room, connected by air ducts to the cultivation room
- Can be suspended or installed on ground level
- Ducting allows you to separate the unit from the grow environment, saving space and increasing ease of access
