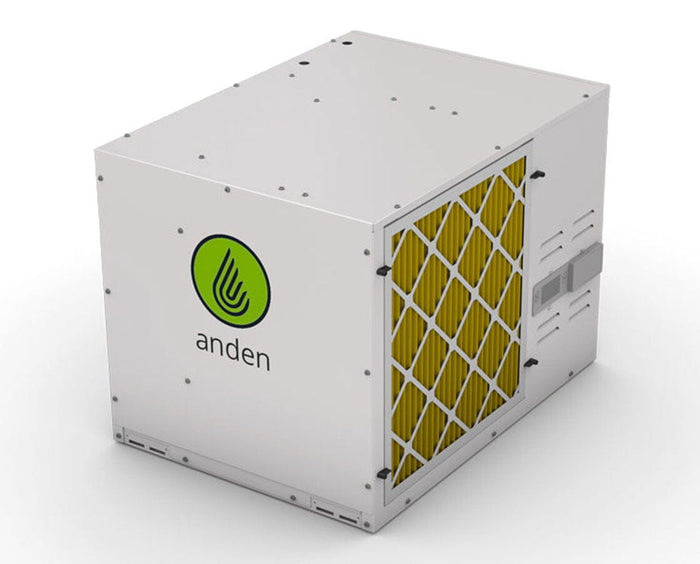

Anden A320V3 industrial grow room dehumidifier unit removes up to 340 pints of moisture per day.
Anden A320V3 Specifications & Literature
Model A320V1 & A320V3 Dehumidifier Parts List
Model A320V3 Dehumidifier Specification Sheet
Model A320V3 Dehumidifier Submittal Sheet
Model A210V1, A320V1 & A320V3 Dehumidifier Quick Start Guide
Model A320V1 & A320V3 Dehumidifier Installation & Operating Instructions
Model A77 Dehumidifier Control Installation & Operating Instructions
Daisy Chain Installation Instructions
Round Duct Kit Installation Instructions
Anden Product Guide
The Anden A320V3 Dehumidifier is a beast of a machine, and will boost your grow room experience.
This dehumidifier is capable of removing up to 320 pints of moisture per day to really optimize your growing environment. It also moves up to 830 cubic feet per minute giving it maximum moisture removal capabilities. Easily control humidity levels with the Model A77 wall mounted controller included in this package.
Designed and built within the U.S.A. this dehumidifier is a quality piece of machinery with a 5-year warranty. This unit is designed for a 277 VAC set up with a 208-240 VAC unit available.
Ensure that your crop growing area does not exceed 60% humidity with this dehumidifier and protect your product from molds and mildews. Lowering humidity will also help your plants with CO2 absorption and increase photosynthesis efficacy.
Extra product information can be found here.
Key Features:
340 Pints/day – Industrial-level humidity control
830 CFM @ 0.0” – To remove moisture, it’s got to move the moisture-filled air. The powerful fans circulate huge amounts of air for maximum moisture removal
Energy Efficient – Removes up to 2.5 liters per kilowatt hour, helping keep your operation efficient

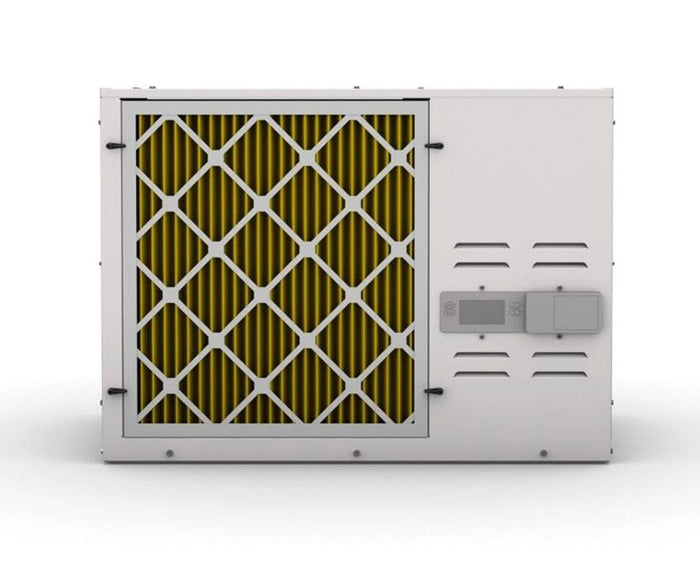

Easy Filters – The self-sealing air filter protects the unit’s vital components, plus it’s easy to replace
Flexible Installation – The pre-installed electrical plug is simple to remove for hard-wired applications. Plus, options for suspended, freestanding, or ducted installation
Safety Checks – Terminals on the Anden A320V3 dehumidifier make it easy to install a float switch to protect against overflows
Remote Control – The included Model A77 remote control relays diagnostics from the dehumidifier, giving you simple control of the conditions in your cultivation space (upgrade options available)
1-2-3 for VPD – The unit constantly monitors humidity and temperature, making it simple to reach the optimal Vapor Pressure Deficit for maximum growth
Built to Last – Designed and Manufactured in U.S.A. Dependability is at the heart of what we do. That’s why we offer a 5-year warranty on this product–so you can grow with confidence
Whether you are starting seedlings, rooting cuttings or drying, humidity control is critical. Humidity rising above 60% can lead to molds, mildews, and other unwanted biological growth. High humidity can also prevent plants from properly taking in CO2, preventing efficient photosynthesis. Anden helps create an environment that drives transpiration at an optimal rate, while helping prevent disease outbreaks.
Humidity and Growth
Humidity control is critical. As a cultivator, you know that. Each stage of growth requires an optimized environment for proper transpiration. Keeping humidity in check will prevent mold and mildew, and help plants get the CO2 they need for efficient photosynthesis and growth.
Vapor Pressure Deficit
For optimal indoor growth, don’t forget about VPD. It’s a measure of the difference between vapor pressure in the leaves of your plants and the air surrounding them. Humidity control in the growth environment helps ensure that plants can “breathe” by taking in moisture and letting it out.
The Anden Impact
Anden dehumidifiers put you in control of your growth environment. You get maximum moisture removal and VPD control, with on-board and remote monitoring capabilities to make it all intuitive. Simply put, these grow-optimized products are designed with your plants in mind.
INSTALLATION OPTIONS
The Anden A320V3 Dehumidifier – Cultivation rooms come in all shapes and sizes. This Anden Dehumidifier gives you flexible installation options to ensure maximum effectiveness and optimized conditions.

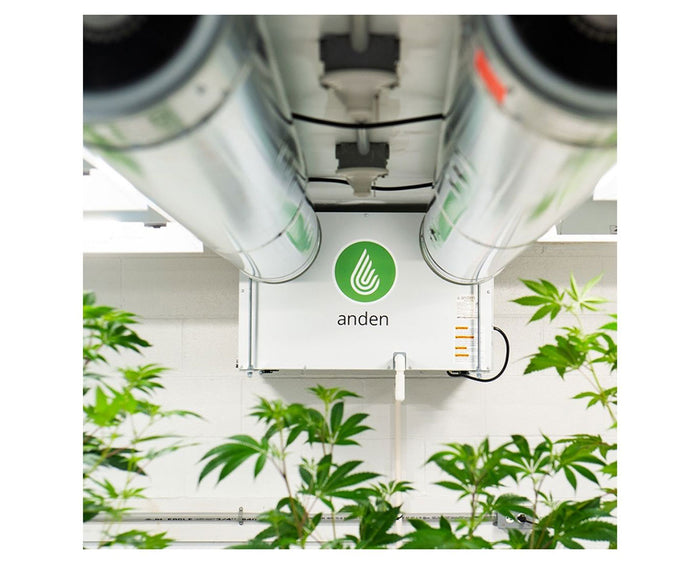

SUSPENDED – Saves space in any cultivation room
- Includes brackets for suspending unit from ceiling
- Pulls in air, dehumidifies, and returns it to the space
- Optimizes humidity, temperature, and CO2 for maximum growth
FREESTANDING – Operates within the cultivation room
- Humid air is pulled into the dehumidifier
- Air is dehumidified and returned to the space
- Optimizes humidity, temperature, and CO2 for maximum growth
INLET AND OUTLET DUCTED – For rooms with limited space
- Located in separate room, connected by air ducts to cultivation room
- Can be suspended or installed on ground level
- Optimizes humidity, temperature, and CO2 for maximum growth
