MrCool 3 Zone Ductless Heat Pump DIY 4th Gen Air Conditioners MrCool

MRCOOL 3 Zone 36K BTU (9K+9K+18K) 23 SEER2 Ductless Heat Pump DIY 5th Gen

by MRCOOL
$4,538.00 - $4,538.00
$4,538.00
$4,538.00 - $4,538.00
$4,538.00

Many other BTU combinations are available. Contact us at (973) 206-7590 for special requests.

Line sets not included in pricing. Purchase separately below.

🌿 Free shipping on U.S. orders $175+, unless noted above

🌿 Canada, AK & HI: Add'l shipping charges

🌿 Price match guarantee, details here

Energy Rebates & Bulk Pricing Available

SAVE BIG! Contact us for Bulk Pricing and Rebate Eligibility, or call us at (973) 206-7590.

Cash Payment Discounts & Financing Options

Get an additional 3% off when you pay by ACH, Money, or Zelle. Select your option at check out.

We accept all major credit cards, crypto and Paypal 0% credit plans. More details here.

Full Manufacturer’s Warranty

You buy it, we back it! Your purchase is fully covered with a manufacturer’s warranty. More details here.

Control comfort in three rooms with smart zoning, quiet performance, and easy DIY install—no HVAC tech required.

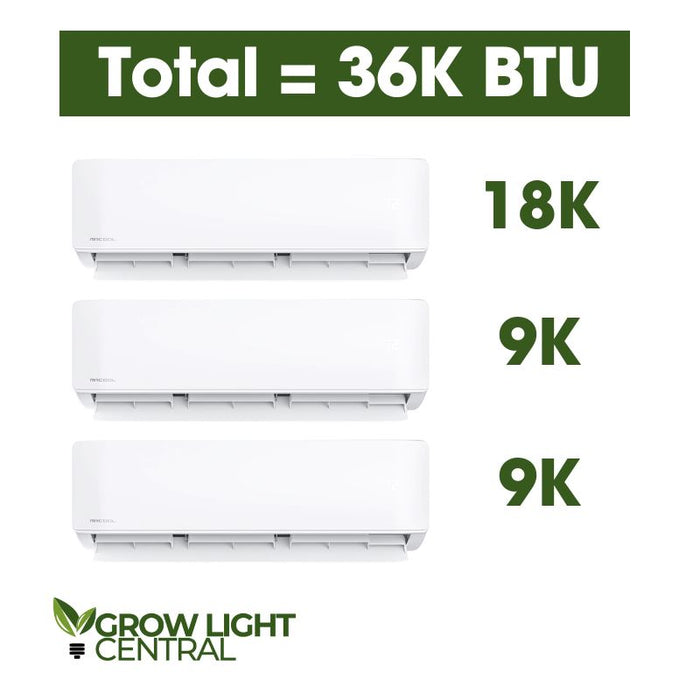

The MRCOOL DIY Multi-Zone 36,000 BTU Mini Split gives you efficient, year-round comfort in three different areas—without hiring an HVAC installer. With two 9K air handlers (350 sq ft each) and one 18K unit (800 sq ft), this system is ideal for primary bedrooms, offices, living rooms, or small open-plan areas.

Just mount the units, connect the lines, and plug it in. It’s heating and cooling on your terms—with smart control, strong warranty coverage, and no service call fees.

Note: Pricing doesn't include the Line Sets. Available to purchase separately.

Coverage Area

Please refer to this coverage chart to determine the required BTUs for the area you wish to cool or heat.

  • Square Feet: Up to 400 | BTU = 9K
  • Square Feet: Up to 550 | BTU = 12K
  • Square Feet: Up to 800 | BTU = 18K
  • Square Feet: Up to 1050 | BTU = 24K
  • Square Feet: Up to 1550 | BTU = 36K

Note about condenser sizes versus total air handler capacity: The total capacity of the combined air handlers may exceed the capacity of the condenser in certain configurations. While this provides more flexibility in your setup, you will need to either shut off one of your air handlers (zones) or reduce the output of all zones.

Features

  • Easy DIY Installation
  • Simple to Use
  • Multi-room Comfort
  • Energy Efficient DC Inverter
  • 100% Sealed System
  • Gold Fin Condenser
  • Eco Safe R-410A Refrigerant
  • Smartphone App Controls
  • Lifetime Technical Support
  • Follow Me Feature
  • Low Ambient Cooling

What's Included?

  • 1 x MRCOOL 36k DIY 5th Generation 4 Zone Multi-Zone Mini-Split Condenser 230v
  • 2 x MRCOOL 9k DIY 5th Generation Mini-Split Air Handler 230v
  • 1 x MRCOOL 18k DIY 5th Generation Mini-Split Air Handler 230v

Download Resources

Specifications

SKU: DIYM336HPW02C00

SEER2: 23

EER2: 12

HSPF2-4: 9.9

HSPF2-5: 7.5

Tonnage: 3

Cooling Capacity (BTU): 34,000

Heating Capacity (BTU): 36,000

Voltage (V): 208/230

Phase: 1

Cycle: 60

Max Fuse Breaker (A): 35

Min Circuit Ampacity (A): 30.5

Color: White

Zone Capacity: 5

Refrigerant Type: R-454B

Refrigerant Volume (oz): 104.75

Decibel Rating (dBA): 64

Inverter: DC

Line Set Length: 25 ft

Max Line Set Length (ft): 221.4

Liquid Line Size: 1/4

Suction Line Size: (3/8 x4), (1/2 x1)

Compressor Motor Type: Rotary

Auxiliary Heater Included: No

Auxiliary Heater Available: No

Fan Only Option: Yes

Quiet Mode: Yes

Auto Cool: Yes

WiFi Compatibility: Yes

App Compatibility: Yes

Works with iOS: Yes

Works with Android: Yes

UL Listed: Yes

ETL Listed: Yes

Energy Star Certified: Yes

AHRI Certified: Yes

Registered Warranty: Extended Limited Lifetime*

Base Parts Warranty: 5 years

Base Compressor Warranty: 7 years

Has Batteries: Yes

Contains Electronics: Yes

Contains Chemicals: Yes

Contains Aerosol: Yes

Contains Compressed Gas: Yes

Proposition 65 Warning: Yes

Net Depth (in): 16.14

Net Height (in): 31.89

Net Width (in): 37.24

Net Weight (lbs): 169.24

Gross Depth (in): 19.69

Gross Height (in): 34.84

Gross Width (in): 42.91

Gross Weight (lbs): 181.88

Grow Light Central expert advice for indoor growing equipment

Who should use this mini-split system?

  • Homeowners needing targeted comfort across three zones of different sizes.
  • Growers or facility managers running a mix of small and large rooms with independent control.
  • DIY installers looking for an affordable, tool-free HVAC upgrade.
  • Smart home users wanting seamless integration via app, Alexa, or Google Home.
  • Energy-conscious families looking to cut utility costs without sacrificing comfort.

Best applications

  • Multi-zone setups with two 350 sq ft spaces (9K BTU) and one larger 800 sq ft space (18K BTU).
  • Year-round use for cooling, heating, and dehumidifying across varied environments.
  • Simple installations using pre-charged Quick Connect lines with eco-friendly R-410A refrigerant.
  • Smart scheduling and automation using the MRCOOL app and voice control features.
  • Low-maintenance environments with filter alerts, troubleshooting codes, and auto-restart.
