AC Infinity IONBOARD S24 200W Full Spectrum Led Grow Light

Original price $249.00 - Original price $348.00
Original price
$249.00
$249.00 - $348.00
Current price $249.00

Contact Us For Volume Pricing.

Notify me when back in stock
Cash Payments: Take an additional 3% off

Get an additional 3% off when you pay by Bank Transfers (ACH) or Money Order. Select your option at check out.

All Other Payment Options

We accept all major credit cards, crypto and Paypal 0% credit plans. More detail here.

The IONBOARD S24 LED Grow Light with 200W of power utilizes Samsung LM301B LED chips for coverage of up to 2x4 feet. Its full spectrum capabilities make it ideal for a variety of horticultural applications.

AC Infinity's advanced LED grow light is the perfect solution for any aspiring or experienced gardener. This full spectrum LED grow light is designed with algorithmically positioned Samsung LM301B diodes to maximize plant yields. It features a proprietary driver that enables light dimming and can connect with AC Infinity's smart controllers which enables pairing with additional LED light fixtures when using expansion dongles (sold separately).

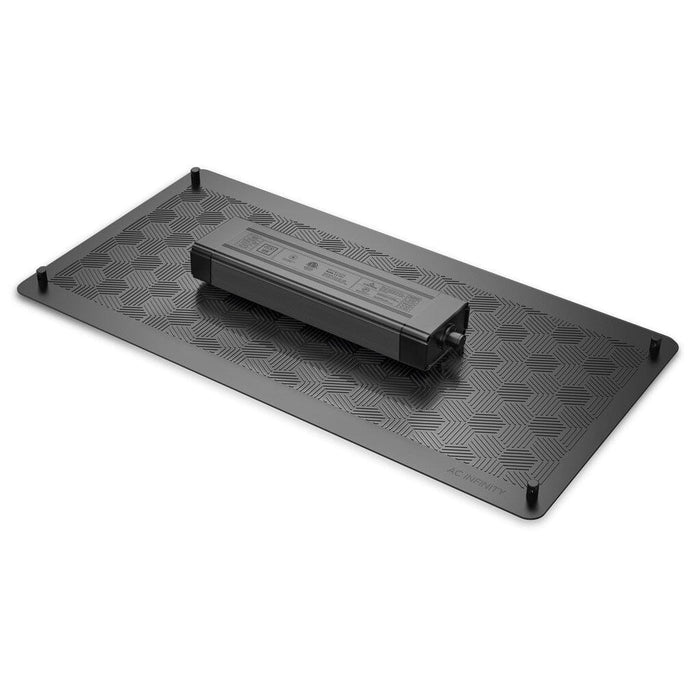

Assembled on a fanless aluminum board which dissipates heat perfectly, this fixture is also certified IP-65 waterproof so you can take advantage of its full potential in any environment – high temperatures or humidity included.

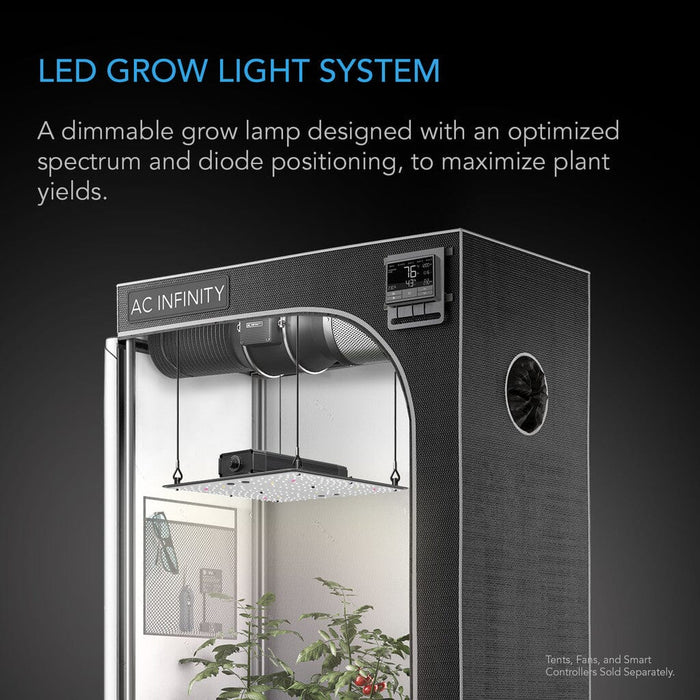

This LED grow fixture includes a pair of metal bar hangers and rope hangers and is designed for grow tents with interior reflective Mylar lining, and used to cultivate a variety of plants, fruits, and vegetables. This product is a part of the UIS™ platform of grow devices and smart controllers, designed to integrate with each other to achieve your ideal environment.

IONBOARD S24 200W Features & Benefits

  • Dimmable LED grow light designed with an optimized spectrum and diode positioning, to maximize plant yields.
  • Specially formulated full-spectrum Samsung LM301B LEDs to achieve the highest growth rates in all plant stages.

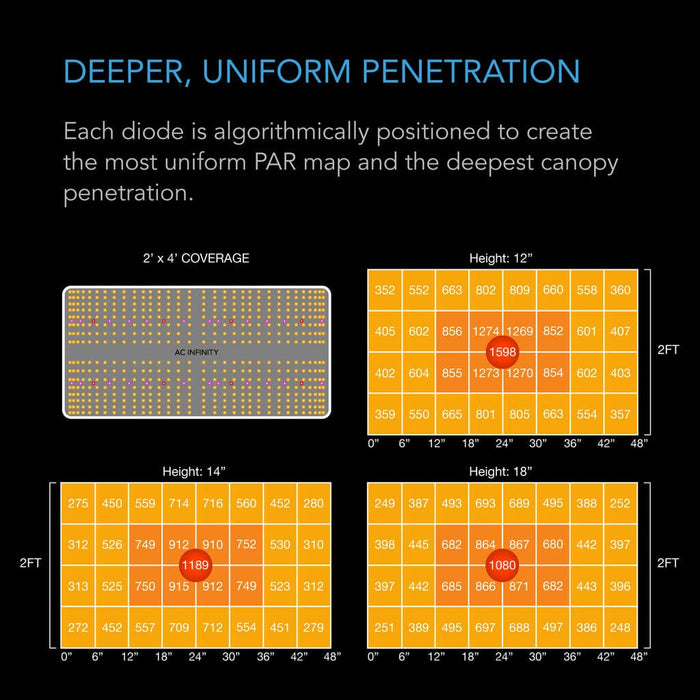

  • Algorithmically positioned diodes create the most uniform PAR map and the deepest canopy penetration.
  • Dimmer enables 0 to 100% brightness. Can connect with our smart controllers to access grow cycles, scheduling, and app.
  • Constructed on a unibody aluminum board and IP-65 rated for grow environments with higher humidity and heat.

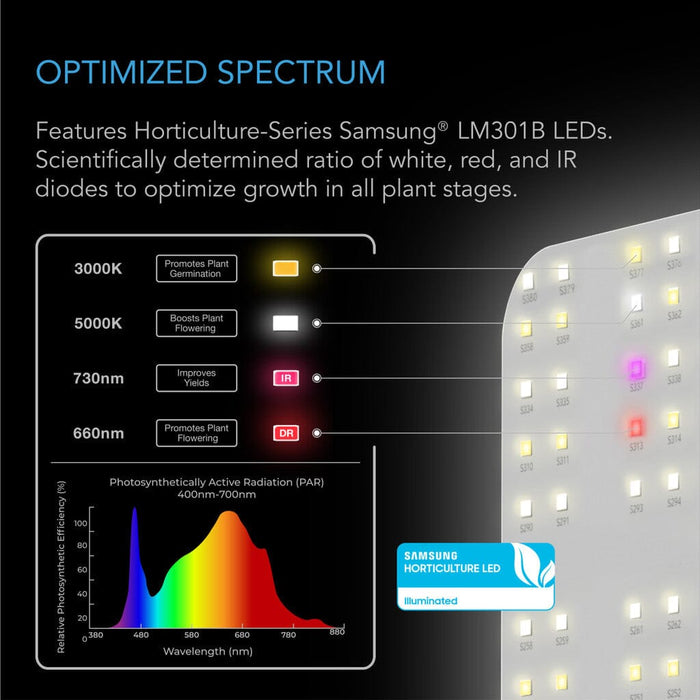

OPTIMIZED SPECTRUM

Each light contains an optimized ratio of Horticulture-Series Samsung LM301B white, red, and IR LEDs designed to maximize plant yields. The diodes are then algorithmically positioned within the board to provide the most uniform PAR map coverage and deepest light penetration. These features help achieve the highest growth rates in germination, vegetative, and flowering stages.

FUTURE READY CONTROLS

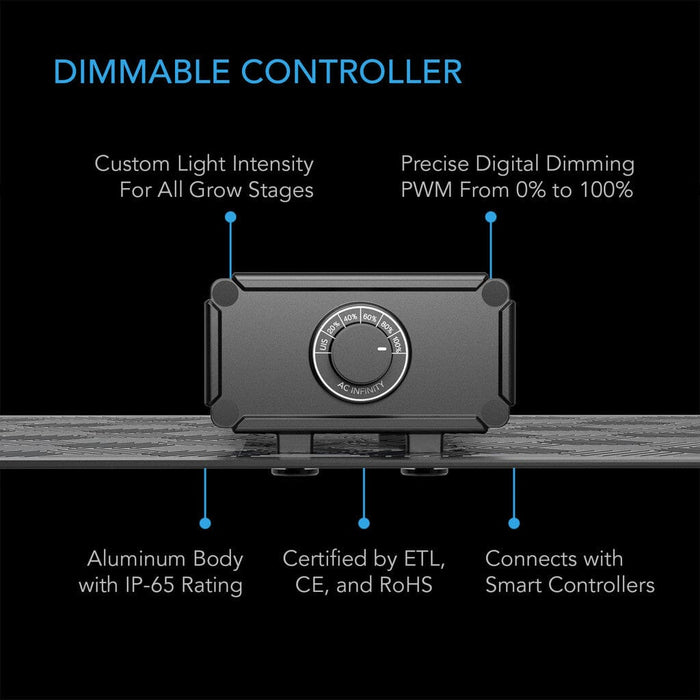

Features a proprietary LED driver that enables 0-100% dimming with an easy-to-use control knob that adjusts light intensity in 20% increments. The driver also contains a port that enables daisy chaining and can connect with our smart controllers to access grow cycles, scheduling, app control, and more. Join our ecosystem of controllers and grow equipment including fans and lights, all working together to achieve the optimal environment.

AC Infinity Product Documents

AC Infinity IONBOARD Series Product Manual

AC Infinity IONBOARD Series ETL Certification

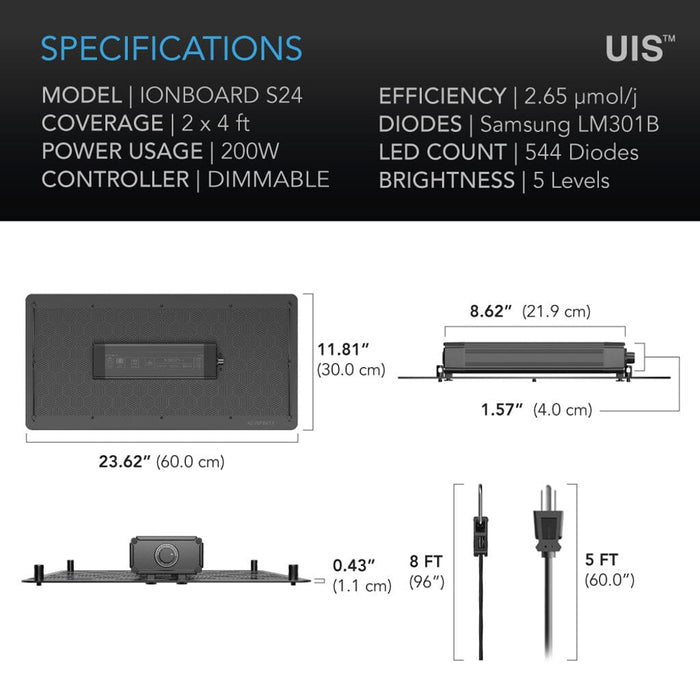

Product and Mounting Dimensions
Light Dimensions 11.81 x 23.62 in. (30.0 x 60.0 cm)
LED Board Thickness 0.43 in. (1.1 cm)
Driver Dimensions 8.62 x 1.57 in. (21.9 x 4.0 cm)
Product Performance and Technical Specs
Coverage 2 x 4 ft.
Diodes Samsung LM301B
LED Chip Count 544
LED Driver AC Infinity Proprietary Driver, Model GTS-100
Efficiency 2.65 µmol/j
PPFD 1598 PPFD
Spectrum 660nm, 730nm, 3000K, 5000K
Wattage 200 W
Voltage 100-277V AC
Frequency 50/60 Hz
Amps 1.84 A @ 120V | 0.92 A @ 240V | 0.80 A @ 277V
Controller Digital Dimming Timer
Power Connector Type US Plug (NEMA 1-15 Type-A)
Operating Humidity 35 to 85% RH
Operating Temperature 32 to 140°F
Life Expectancy 50,000 Hours
